Description

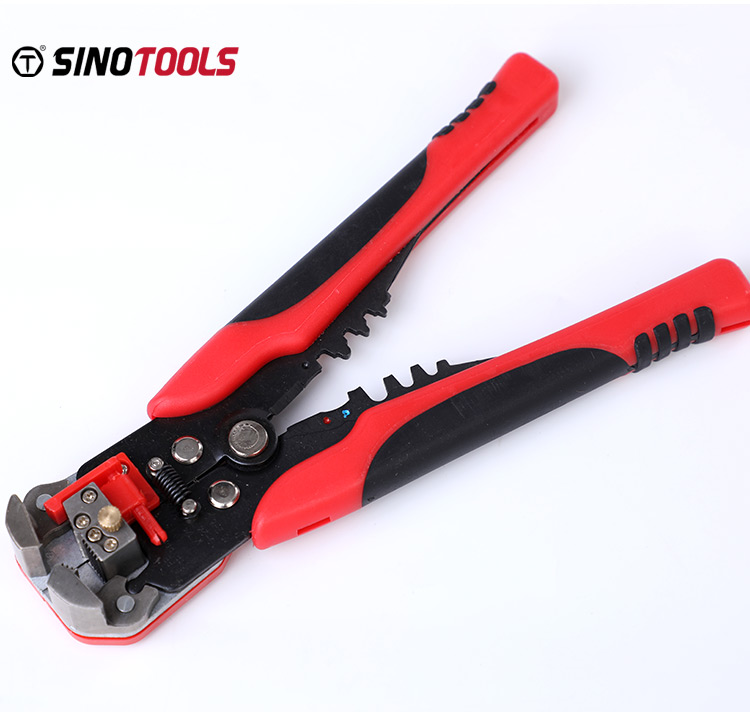

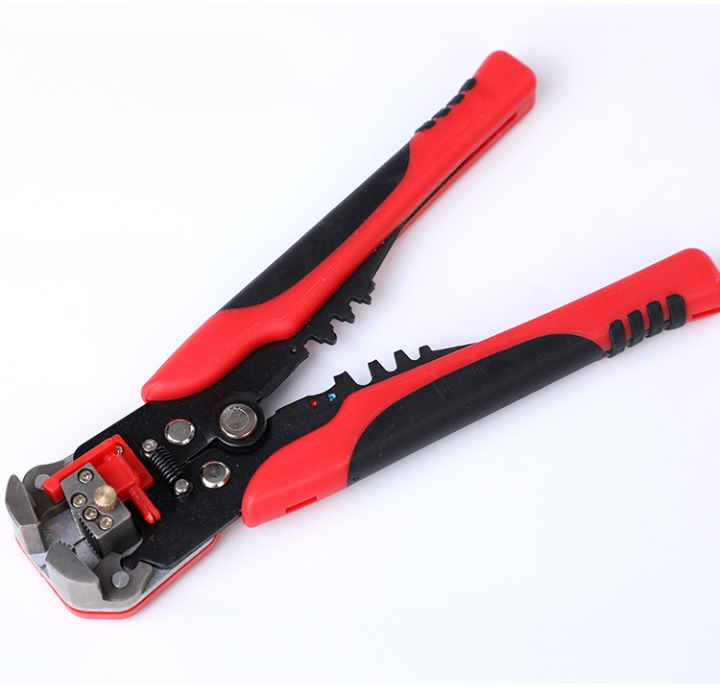

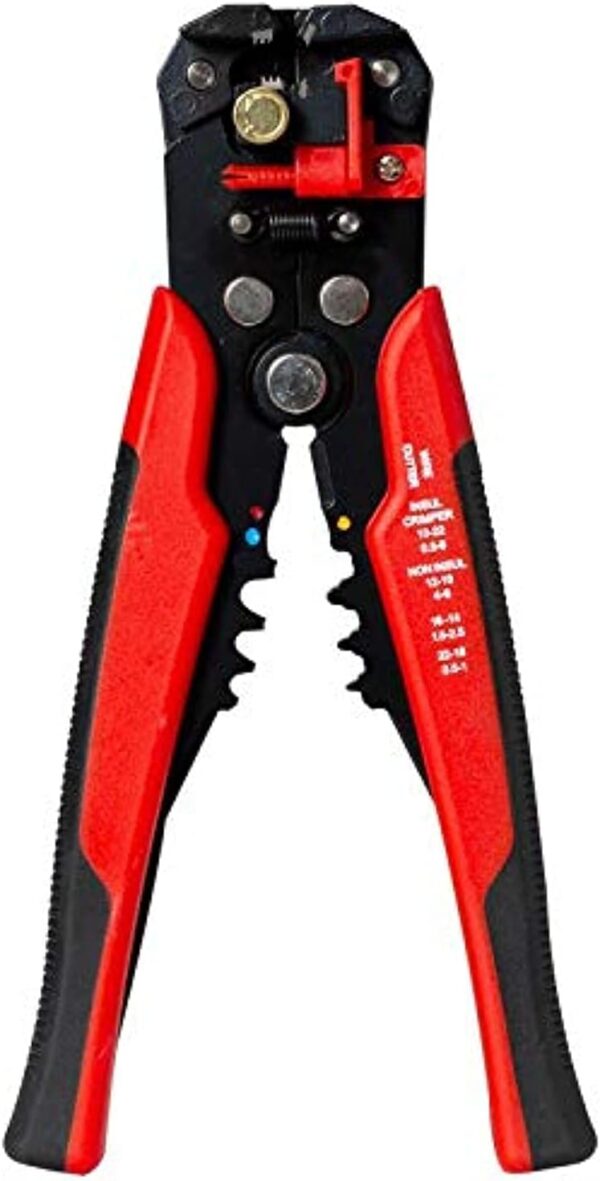

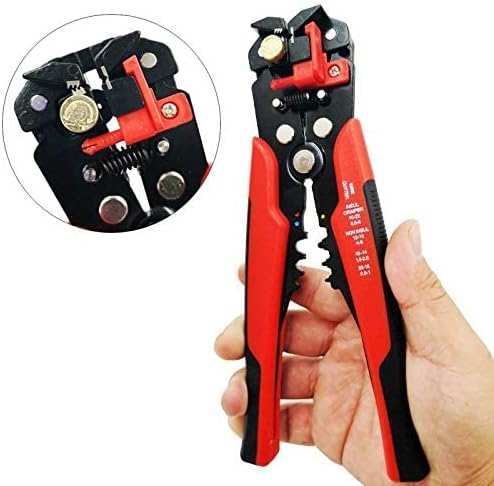

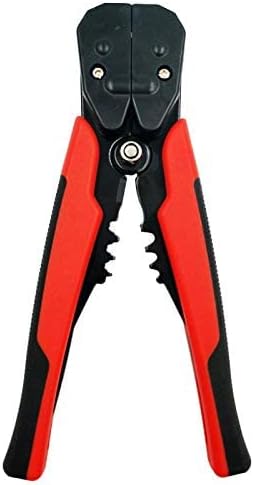

Pride Cable Cutter – Wire Stripper Multi Functional Stripping Tools Crimping Pliers Terminal | Best Quality Tool For Working | Hand Tools

Wire Strippers – Hand Tool

Brand-Name: Pride

Material:

• Head: Zinc Alloy

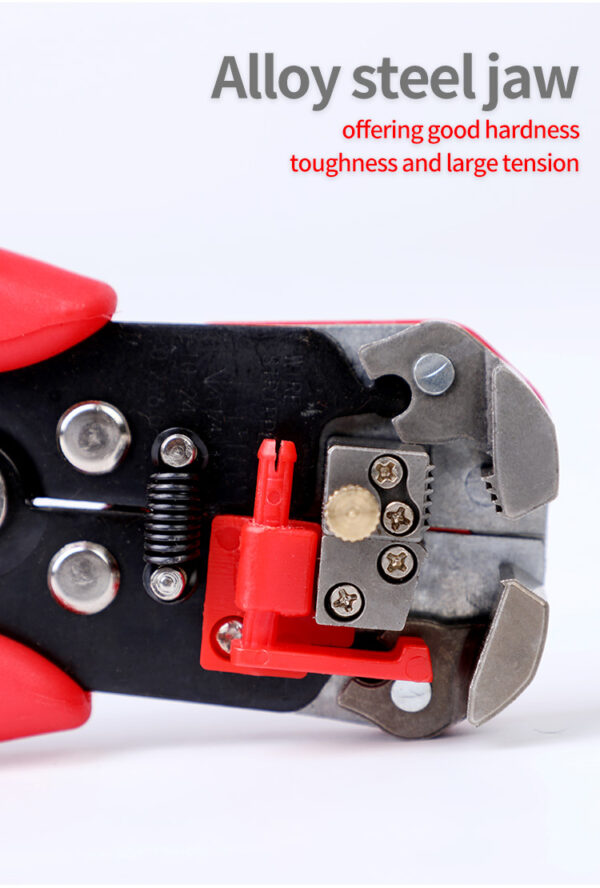

• Cutter Head: Cr12MoV, Hardness HRC 55-60, designed for wire cutting process
• Pliers: A3 Heat Treatment

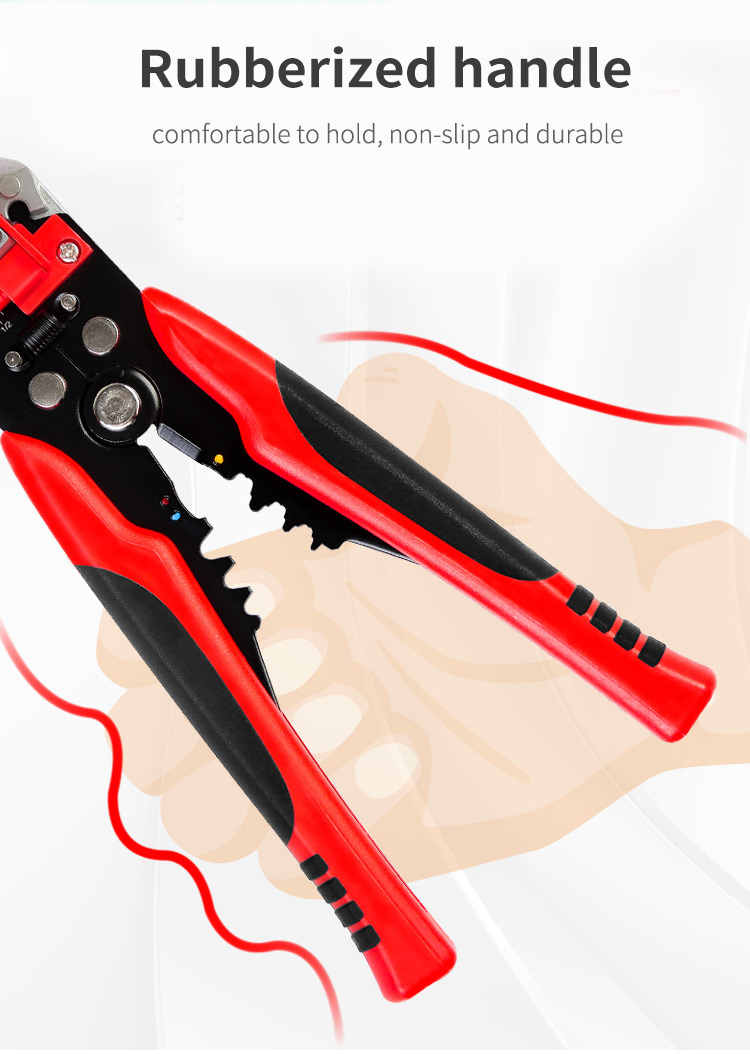

• Handle: PP + TPR

Features:

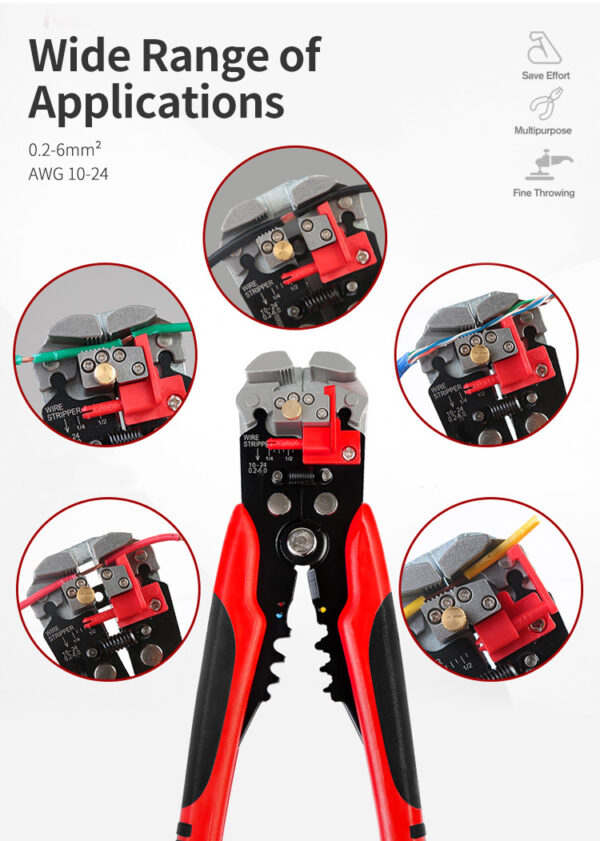

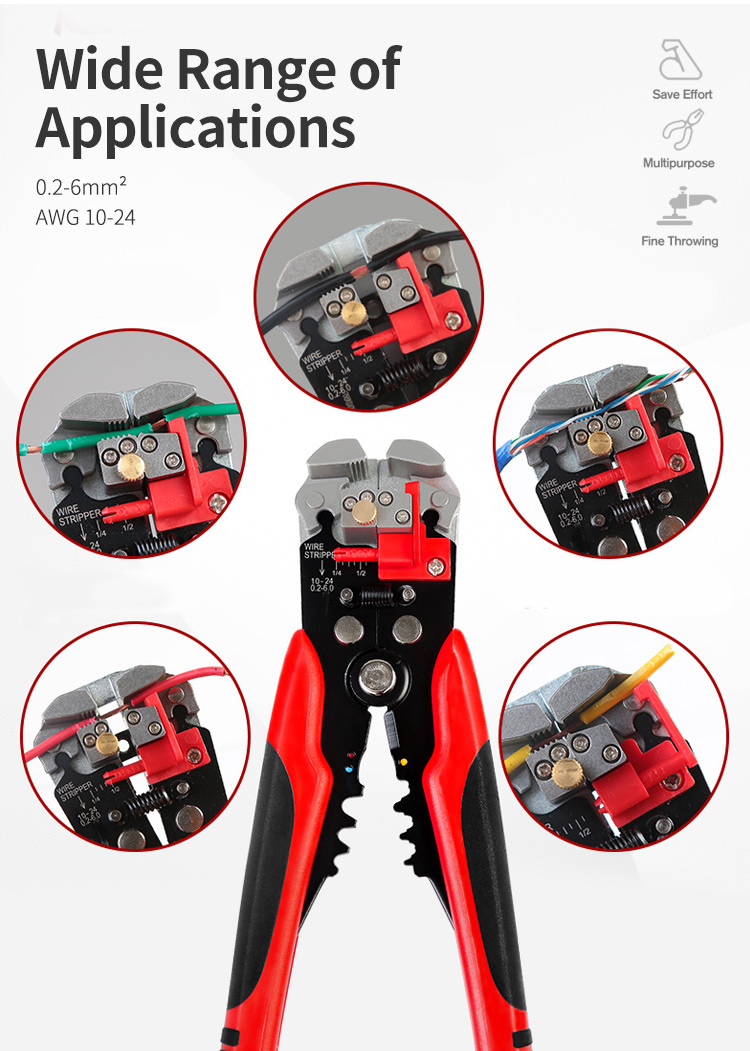

• Stripping Range:
  • 24-10 AWG / 0.2-6mm²
• Cutting Function
• Color: Red

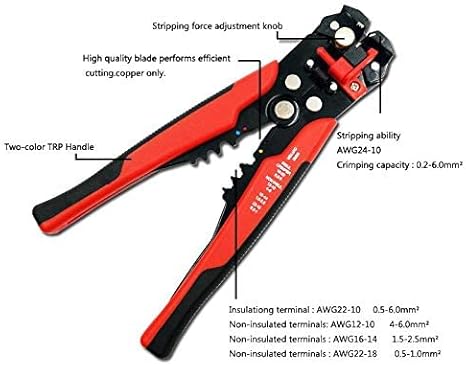

• Terminal Crimping:
  • Insulated Terminal: 22-10 AWG / 0.5-6mm²
  • Non-insulated Terminal:
    • 12-10 AWG / 4-6mm²
    • 16-14 AWG / 1.5-2.5mm²
    • 22-18 AWG / 0.5-1mm²

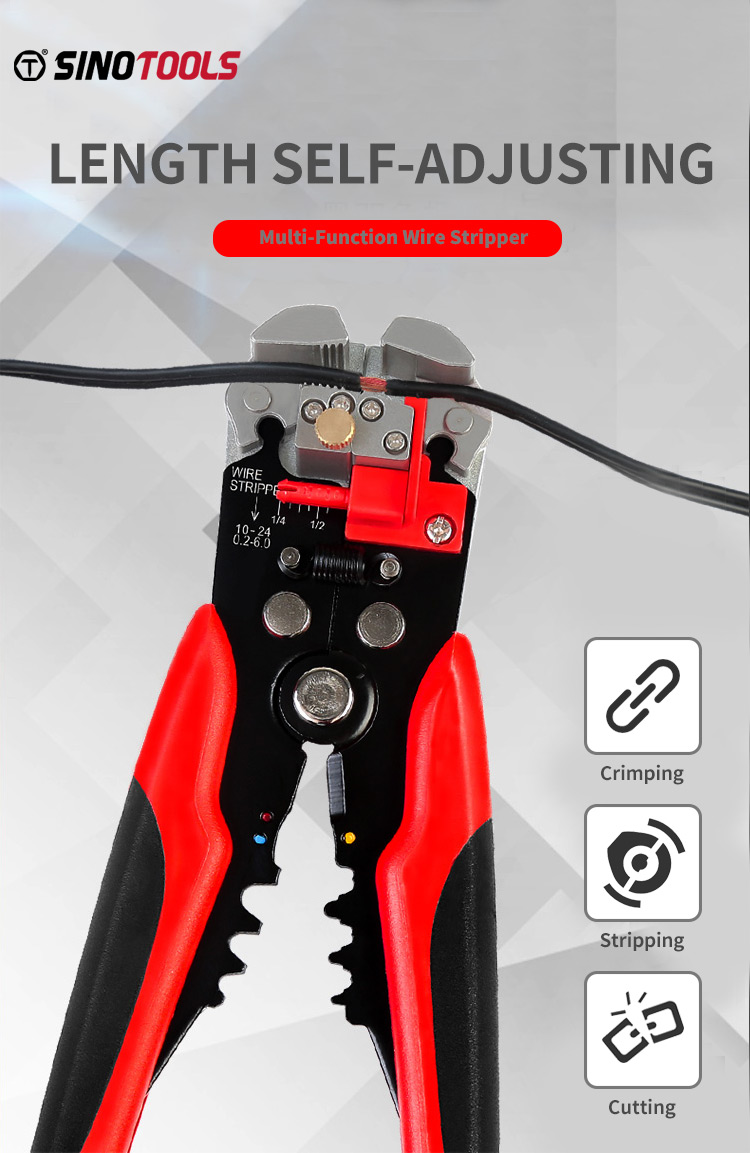

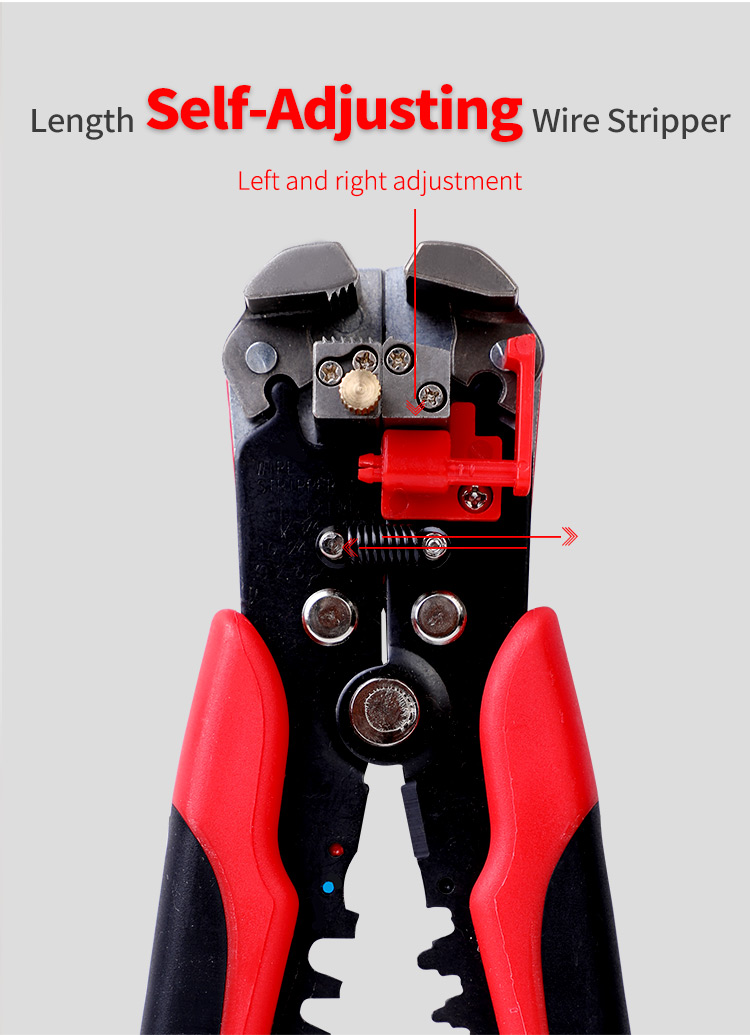

How to Use the Adjustment Screw:

1. Adjusting Blade Biting Force:
   • Turn the adjusting screw to modify the blade’s biting force:
     • Counterclockwise to reduce the biting force
     • Clockwise to increase the biting force
2. Stripping Thin Wires:
   • For thin wires, turn the adjusting screw counterclockwise to reduce biting force.
3. Broken Wire Stripping:
   • If there’s a broken wire, turn the screw counterclockwise for easier stripping.
4. Difficult Stripping or Unable to Strip:
   • If stripping is difficult or not working, adjust the screw clockwise for optimal performance.

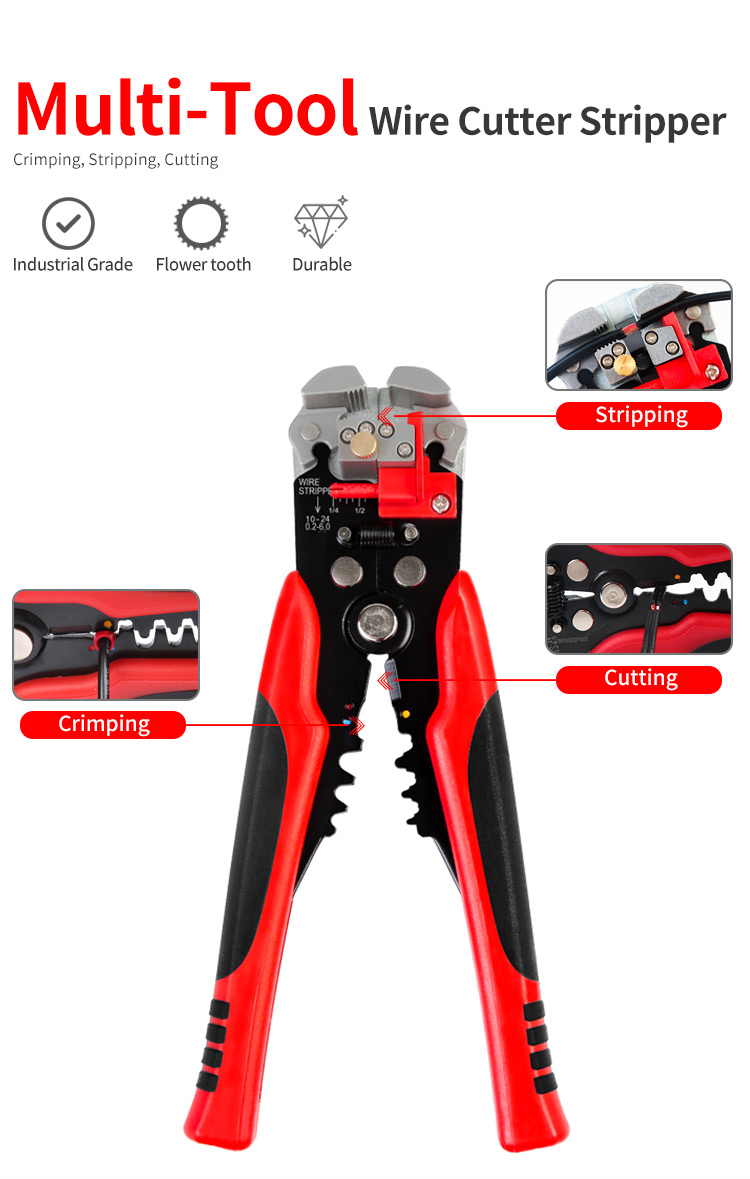

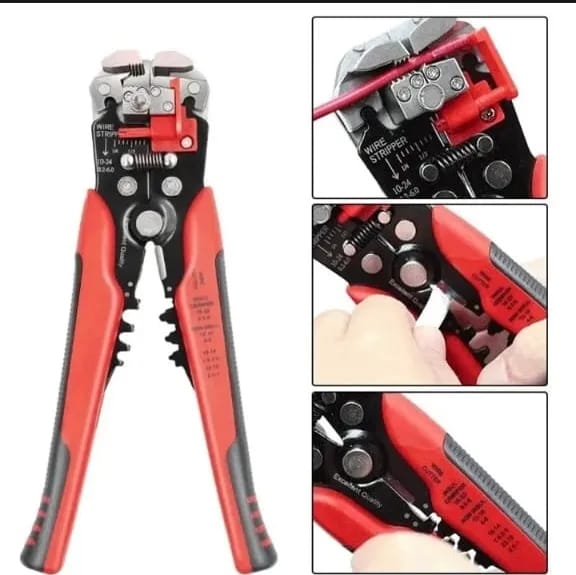

This Wire Stripper provides precise cutting, stripping, and terminal crimping functionality, making it a versatile tool for a variety of electrical tasks.
